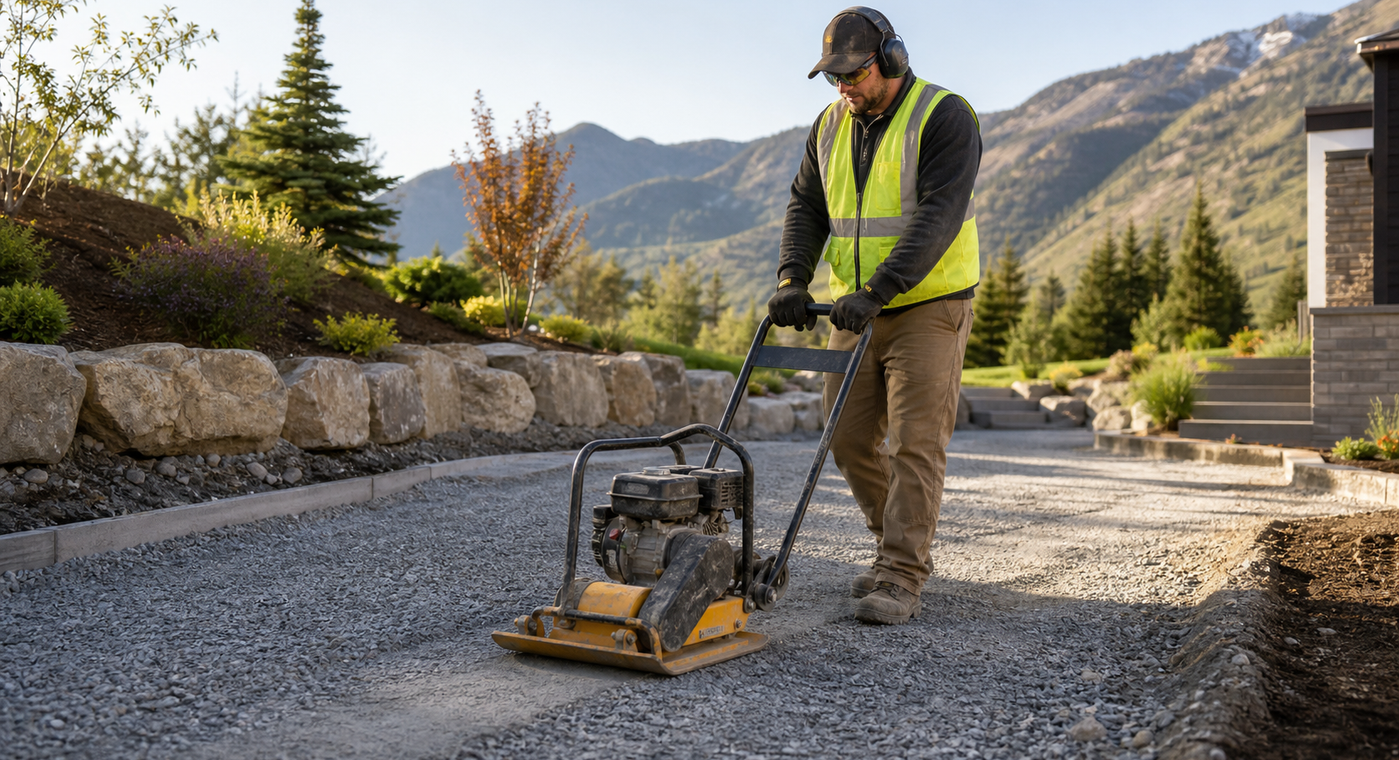

A plate compactor is usually the right rental for compacting a gravel base because its low-amplitude, high-frequency vibration helps angular aggregate particles settle and interlock. But “plate compactor for gravel” is not one-size-fits-all advice. The right machine depends on the gravel gradation, the material under it, the loose lift thickness, the size and shape of the work area, the density or performance requirement, and whether the surface will support pavers, concrete, vehicles, drainage stone, or landscaping.
For local options, compare plate compactor rentals in Provo and compactor rentals in Coeur d’Alene. If the fill contains substantial clay, must be compacted in a narrow trench, or needs a kneading impact rather than broad vibration, review the plate compactor vs jumping jack guide before booking.
Quick Answer: Which Plate Compactor Should You Rent for Gravel?
For a small patio, walkway, paver repair, or thin granular base in a confined area, a maneuverable forward-travel plate is often the practical choice. For a wider driveway, thicker aggregate section, repeated professional use, or a site where backing out is difficult, a heavier reversible plate can be more productive and easier to control. Those are starting points, not guarantees: verify the actual machine’s operating weight, plate width, centrifugal force, rated application, recommended lift, and transport needs with the rental provider and operator manual.
Wacker Neuson describes single-direction plates as maneuverable machines for base preparation, mixed soils, asphalt, and interlocking pavers in confined spaces. Its reversible plate line is intended for a wider variety of sub-bases and lets the operator change travel direction from the handle. That distinction is useful, but model specifications still matter more than the category name.
Start With the Material, Not the Machine
Clean crushed gravel
Clean crushed gravel has little fine material. Its angular particles can interlock, and vibratory compaction is commonly effective, but the material remains permeable and may continue to move until the aggregate structure is properly seated. Open-graded drainage bases are not compacted or judged exactly like dense-graded road base. Follow the project detail and aggregate specification rather than adding fines simply because the surface looks loose.
Dense-graded aggregate, road base, or crusher run
Dense-graded material combines larger aggregate with smaller particles that fill the voids. It can create a firm base when the gradation, moisture, lift thickness, and compactive effort work together. Too dry, the particles may not rearrange efficiently and dust can increase. Too wet, the base may pump, rut, or feel unstable. The target is not “as much water as possible”; it is the moisture condition required by the material and project specification.
Rounded pea gravel or washed river rock
Rounded stone does not interlock like angular crushed aggregate. A plate may settle it, but it may remain mobile under point loads or traffic. If the design requires a stable structural base, confirm that rounded stone is actually permitted. Do not assume more passes can turn the wrong aggregate into a well-graded base.
Gravel over silty or clayey subgrade
A granular surface does not erase a weak subgrade. If the plate makes the area wave, pump, rut, or push water upward, the problem may be saturated or unsuitable soil beneath the gravel. Adding more aggregate and continuing to vibrate can hide the symptom temporarily without correcting drainage, separation, stabilization, or undercut requirements. Stop and resolve the subgrade or ask the project designer before building the next lift.
Federal Highway Administration guidance lists vibratory equipment as a first choice for clean gravels, clean sands, and silty sands and gravels, while more plastic cohesive soils often favor pad-foot, sheepsfoot, pneumatic, or other methods. The same guidance emphasizes that soil type, lift thickness, equipment energy, number of passes, moisture, and operator skill all affect the result.
Five Questions That Determine Plate Compactor Size
1. What must the finished base support?
A garden path, patio, retaining-wall footing, concrete slab base, residential driveway, utility backfill, and commercial pavement section can have different aggregate, thickness, drainage, and density requirements. Start with the drawing, paver or wall system instructions, local requirements, and any geotechnical recommendations. A rental counter can help match a machine to the stated requirement, but it should not invent the requirement.
2. How thick is each loose lift?
A plate compactor only affects a limited depth. Thick fill should be placed and compacted in separate lifts so energy reaches the full layer. FHWA notes that field lift thickness is controlled by soil type, required compaction, equipment size and energy, passes, and skill; its broad heavy-construction discussion cites typical lifts of 6 to 12 inches, while separate small-equipment structural backfill examples use roughly 6 to 8 inches. A specific walk-behind plate may require thinner lifts. Use the model manual and project specification, not a broad range, to set the actual loose lift.
3. How large and confined is the work area?
Plate width affects both coverage and maneuverability. A wider plate covers open ground faster but can be awkward beside foundations, steps, utility boxes, and tight curves. A compact forward plate is easier to turn in small hardscape areas. A reversible plate can reduce wrestling and dead-end turns on driveways, long trenches, and areas bounded by walls.
4. What compaction force and operating weight does the model provide?
Do not choose only by horsepower. Compare the model’s operating weight, centrifugal force, vibration frequency, plate dimensions, rated applications, and documented maximum lift or production guidance. Two machines that look similar can deliver different energy and productivity. A larger machine can improve output on a suitable base, but it also increases transport weight, handling difficulty, edge-clearance needs, and the risk of damaging delicate pavers or nearby structures.
5. How will the result be verified?
For a homeowner patio, uniform elevation, stable response, no visible movement under the plate, and compliance with the paver system instructions may be practical acceptance checks. Engineered, commercial, structural, utility, or pavement work may require proof rolling, density testing, moisture testing, or inspection. If a drawing says “95 percent compaction,” determine which laboratory method and field test apply; the number is incomplete without the referenced standard.
Forward Plate vs Reversible Plate for Gravel
Choose a forward plate when
The project is relatively small; the lifts are within that model’s capability; access is tight; frequent turning is possible; transport weight matters; and the work is typical patio, walkway, paver repair, light base preparation, or small asphalt patching. A forward plate is often simpler to load, move, and guide along edges.
Choose a reversible plate when
The area is larger; the base section or aggregate demands more compactive effort; productivity matters; the work path ends at a wall or other obstacle; or a heavier professional machine is specified. Reversing direction from the controls lets the operator work back out of confined lanes without dragging the machine around.
Choose something else when
The work is dominated by cohesive clay, a very narrow trench, thick deep fill, a large open commercial pad, or a specification beyond the selected walk-behind plate’s capability. A rammer, trench roller, ride-on roller, or different soil treatment may be appropriate. If the surface layer is sod or topsoil, aggressive base compaction may also be wrong; the yard-prep equipment guide explains why hardscape base and lawn-root-zone preparation are different.
A Reliable Gravel Compaction Workflow
Step 1: Confirm the section before moving material
Write down the finished elevation, total base depth, aggregate type and gradation, drainage or geotextile requirements, edge restraints, lift thickness, compaction criterion, and allowable equipment. Account for the thickness of pavers, bedding, asphalt, concrete, or other finish material so the compacted base does not end too high.
Step 2: Prepare and evaluate the subgrade
Remove organic matter, roots, debris, loose topsoil, and obvious soft pockets. Shape drainage intentionally. If the specification calls for separation fabric, stabilization, or undercut, install it before the aggregate. Never use the plate over unknown buried hazards, exposed utilities, unsupported edges, or an excavation condition the manufacturer prohibits.
Step 3: Spread an even loose lift
Dumping one deep pile and trying to compact from the top is a common failure. Spread material to a consistent loose thickness that the chosen machine can compact. Screed or rake high spots and fill low areas before making passes. Measure the lift in several places; the deepest pocket controls whether energy reaches the bottom.
Step 4: Adjust moisture only as the material and specification allow
Moisture can help particles rearrange and can reduce dust, but the correct amount depends on gradation and project requirements. Mist uniformly rather than flooding. If water ponds, the surface pumps, paste rises, or aggregate sticks heavily to the plate, stop and let the material drain or dry. For engineered work, moisture should be measured and controlled to the specification.
Concrete Masonry & Hardscapes Association guidance for permeable interlocking concrete pavement illustrates why the complete system matters: it calls for specific open-graded aggregates, controlled lifts, wetting or misting to enhance compaction and reduce dust, and heavy equipment suited to the base. It also notes that smaller equipment may require thinner lifts and more passes. Do not copy those machine forces or lift values into a conventional patio unless the same system and specification apply.
Step 5: Make systematic overlapping passes
Start on stable material and follow the machine manual. Work in straight, overlapping lanes so no strip is missed. Keep a simple pass count for each lift and change direction when practical to reduce a striped pattern. Do not push down hard on the handle; guide the machine and let the plate do the work. Keep feet clear and never operate on a slope or near an edge beyond the model’s limits.
Step 6: Watch the material, not only the pass count
Early passes often produce visible settlement and rapid surface movement. As the lift densifies, settlement decreases and the machine response changes. Stop if the material pumps, rolls into waves, segregates, crushes excessively, or the plate stops traveling normally. Extra passes are not automatically helpful; they add time, noise, vibration exposure, fuel use, and potential aggregate breakdown.
Step 7: Check elevation, stability, and acceptance criteria
Use a straightedge or string line to find high and low areas and verify the planned slope. Correct defects in the lift where they occur rather than hiding them with bedding sand or finish material. On specified work, obtain the required field tests before covering the base. Photograph and document the aggregate, lift depth, machine, passes, moisture condition, and test results when another contractor or inspector will rely on the work.
How Many Passes Does Gravel Need?
There is no defensible universal number. The necessary passes change with machine force and weight, travel speed, plate width, aggregate gradation, moisture, loose lift thickness, subgrade support, confinement, and required density. A manufacturer manual or rental provider may give a starting range for a specific model and material, but field response or testing determines whether that starting point worked.
A useful method is to compact a small representative test area using the specified lift and moisture, track each pass, and observe settlement and stability. For engineered work, test that trial area. Once a combination meets the requirement, repeat the same material, lift, moisture, machine, travel pattern, and pass count. Re-establish the method if any of those variables change.
Project-Specific Recommendations
Paver patio or walkway
Use the paver system’s specified dense-graded or open-graded base, establish slope and drainage, compact in controlled lifts, and maintain room for bedding and paver thickness. A smaller forward plate often fits residential geometry. When compacting installed pavers, follow the paver manufacturer’s plate, frequency, and protective-mat requirements; a bare plate or oversized machine can scuff, crack, or chip units.
Gravel driveway
A driveway typically has more area and vehicle loading than a patio. A heavier reversible plate may work for small driveways and edge zones, but a roller can be more productive and may be necessary for thicker or higher-specification sections. Pay particular attention to weak subgrade, drainage, crown or cross-slope, aggregate segregation, and proof of density before traffic.
Retaining-wall base
Follow the wall manufacturer’s detail for base aggregate, leveling pad, embedment, drainage stone, and reinforcement. Compact the foundation and reinforced fill in the stated lifts without driving heavy equipment too close to an unsupported wall face. A small plate may help near the face, while other equipment handles the broader reinforced zone.
Utility trench or narrow backfill
Confirm utility clearance, trench safety, backfill material, and lift requirements. A plate works well where it fits on stable granular backfill, but narrow cohesive trenches often call for a rammer or trench roller. Never operate a plate where exhaust can accumulate or where trench walls, shoring, spoil piles, access, or edge stability make the position unsafe.
Permeable paver or drainage-stone base
Use the exact open-graded aggregate system, layer sequence, and compaction method in the design. The goal is particle seating without crushing aggregate or contaminating the void structure with fines. Do not substitute dense road base, bedding sand, or a generic pass count because the project is intended to drain.
Common Gravel Compaction Mistakes
Mistake one is renting by plate width alone. Width affects coverage, but force, weight, frequency, application rating, direction control, lift capability, and transport needs determine whether the machine fits the job.
Mistake two is placing the entire base depth at once. The top can look firm while the bottom remains loose, allowing later settlement, rocking pavers, ruts, or cracked finishes.
Mistake three is adding excessive water. Moisture can aid compaction, but saturated material can pump and move rather than densify. Fix drainage and moisture instead of trying to vibrate water out of the base.
Mistake four is using rounded decorative gravel as structural base without approval. A visually similar stone can behave very differently when loaded.
Mistake five is chasing a pass number without checking the result. Pass count is a method variable, not proof of density by itself.
Mistake six is ignoring edges, corners, utility boxes, steps, and transitions. These areas often receive fewer passes and become the first places to settle. Plan a safe overlapping pattern and use appropriately sized equipment.
Plate Compactor Safety Before You Start
Read the complete manual for the exact model before operation. The Multiquip reversible plate manual used in this research says not to operate or service the machine before reading the manual, calls for protective clothing, shatter-resistant eye protection, respiratory protection, hearing protection, and steel-toed footwear as required, and describes vibratory plates as low-amplitude, high-frequency tools designed for granular soils and asphalt.
Inspect the machine, guards, belt cover, controls, handle, fasteners, fluid levels, air filter, fuel system, lifting point, and plate condition before use. Refuel only with the engine stopped and cooled. Use approved loading, tie-down, and lifting methods; many reversible units are too heavy for manual lifting. Confirm the trailer, ramp, tow vehicle, and securement are rated for the machine.
Keep people and animals out of the work zone. Wear the PPE specified by the manual and job hazard assessment. Gasoline engines produce carbon monoxide, so never run them in an enclosed or poorly ventilated area. Keep the plate away from unsupported edges, steep slopes, live traffic, overhead hazards, and surfaces that could conceal unstable voids.
Construction noise can damage hearing. OSHA’s construction-noise page points to exposure controls, hearing protection, and hearing-conservation requirements, while NIOSH explains that prolonged hand-arm vibration can produce circulatory and nerve symptoms. Choose maintained low-vibration equipment where possible, take appropriate breaks, avoid an unnecessarily tight grip, and stop if numbness, tingling, pain, or loss of control develops.
What to Tell the Rental Company
Bring the project address, work-area dimensions, access width, slopes, total base depth, loose lift thickness, aggregate name or gradation, estimated tonnage, subgrade type, finish system, compaction specification, and schedule. Explain whether the machine must fit through a gate, work beside walls, reverse out of a lane, compact installed pavers, or be delivered.
Ask for the exact model, operating weight, plate dimensions, centrifugal force, direction control, fuel type, rated applications, model-specific lift guidance, PPE, water-tank or paving-mat options, transport requirements, tie-down points, startup and shutdown steps, daily inspections, damage policy, and what to do if the machine begins to bounce, stall, leak, or stop traveling.
If pickup and transport are the hard part, review the equipment rental delivery guide before booking. It covers access measurements, staging, drop zones, timing, and pickup preparation.
FAQ: Plate Compactors and Gravel
Can you use a plate compactor on gravel?
Yes. Vibratory plates are commonly used on granular gravel bases. Results depend on using suitable aggregate, preparing the subgrade, controlling lift thickness and moisture, selecting a machine with enough documented capability, and verifying the finished base.
Is a heavier plate compactor always better?
No. More operating weight and centrifugal force can improve productivity or lift capability on the right material, but a heavy unit may be difficult to transport, maneuver, or use near edges and may be inappropriate for installed pavers. Match the model to the section and access.
Should gravel be wet before compaction?
Some aggregate compacts better with controlled moisture, and light misting can reduce dust. The correct moisture depends on the gradation and specification. Do not flood the lift; stop if it pumps, ruts, or brings water and fines to the surface.
How deep will a plate compactor compact?
Use the specific model’s documented guidance and the project specification. Effective depth varies with the machine, material, moisture, pass pattern, and required density. Place thick fills in separate controlled lifts rather than relying on a generic maximum depth.
Can a plate compactor fix soft ground?
Not by itself. If the subgrade is saturated, organic, pumping, or unsuitable, additional vibration may make the problem worse. Drainage, drying, undercut, stabilization, separation fabric, or a different design may be required.
Plate compactor or jumping jack for gravel?
A plate compactor is generally preferred for broad granular surfaces because it provides wide, high-frequency vibration. A jumping jack is often more useful in narrow areas and on cohesive soils that benefit from impact and kneading. The actual soil and trench geometry decide.
Rent the Right Compactor for the Base, Not Just the Surface
A durable gravel base comes from a system: correct aggregate, stable subgrade, drainage, controlled lifts, appropriate moisture, a machine matched to the material and access, systematic passes, and verification. The plate compactor is important, but it cannot compensate for the wrong stone, a saturated foundation, an over-thick lift, or a missing specification.
